MAC 70KTL3-X MV On Grid Solar Inverter 70KW 3 Phase Solar Inverter

Name: MAC 70KTL3X MV On Grid Solar Inverter 70KW 3 Phase Solar Inverter
Brand: Growatt
Price: 1 USD

Buy cheap MAC 70KTL3-X MV On Grid Solar Inverter 70KW 3 Phase Solar Inverter product

Brand Name : Growatt

Model Number : MAC 70KTL3-X MV

Certification : CE, IEC62109, IEC 62040, VDE-AR-N 4105, VDE 0126, UTE C 15-712, C10/C11，EN50549, CEI 0-21, CEI 0-16, IEC62116, IEC61727, AS/NZS 4777 , G98, TOR Erzeuger

Place of Origin : China

MOQ : 10 units

Price : negotiable

Supply Ability : 1000units/week

Packaging Details : carton package

Type : DC/AC Inverters

Output Type : Three Phase

Inverter Efficiency : 98.8%

Input Voltage : 1100v

Output Voltage : 180V-1100V

Output Frequency : 50Hz/60Hz

Warranty : 5-10 Years

Display : OLED+LED/WIFI+APP

Protection degree : IP65

apply for : Commercial & Industrial

Contact Now

Growatt MAC 70KTL3-X MV on grid solar inverter 70KW Growatt On Grid Inverter Three Phase Commercial industry inverter

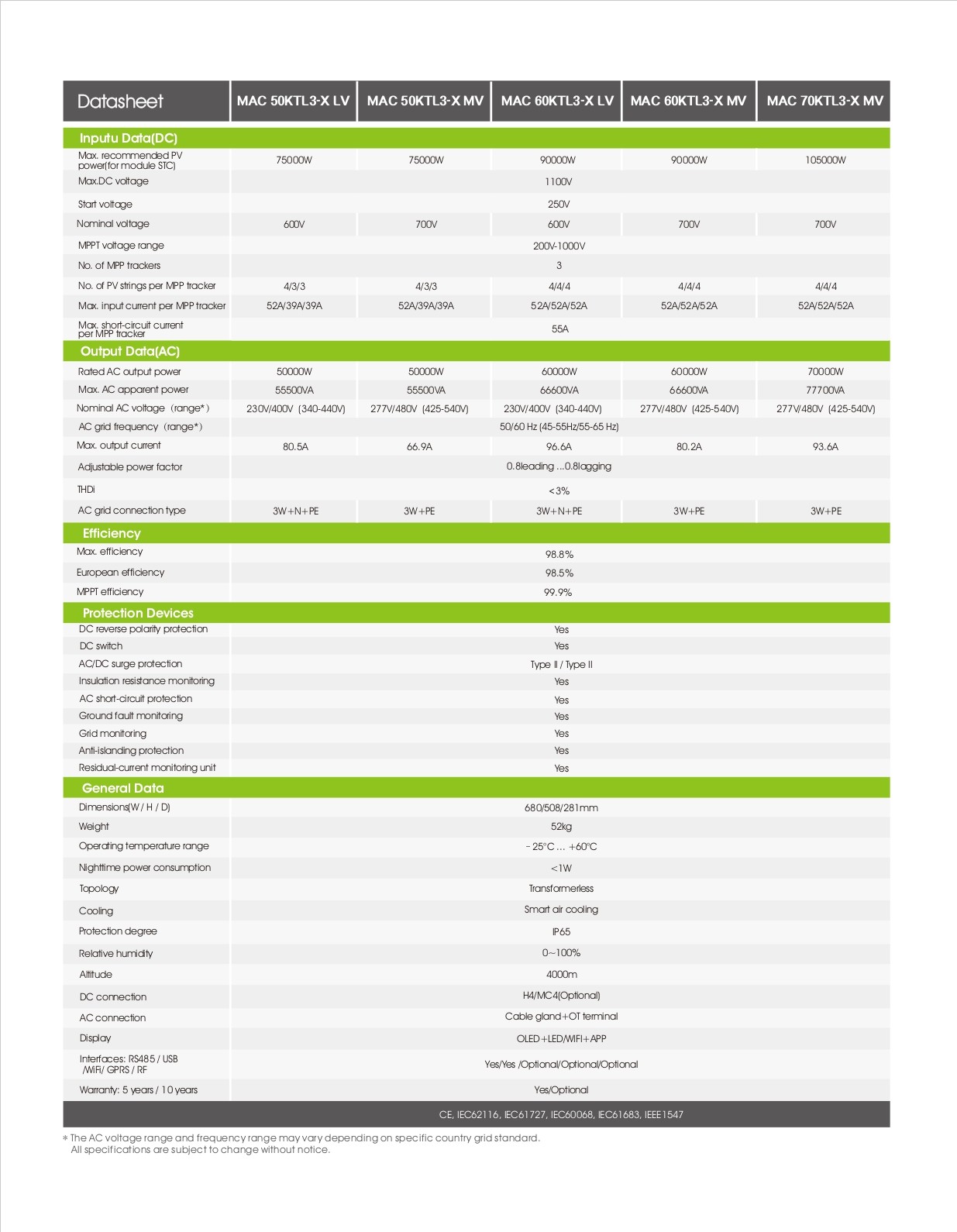

Datasheet	MAC 50KTL3-X LV	MAC 50KTL3-X MV	MAC 60KTL3-X LV	MAC 60KTL3-X MV	MAC 70KTL3-X MV

Inputu Data(DC)
Max. recommended PV power(for module STC)	75000W	75000W	90000W	90000W	105000W
Max.DC voltage	1100V
Start voltage	250v
Nominal voltage	600V	700V	600V	700V	700V
MPPT voltage range	200V-1000V
No. of MPP trackers	3
No. of PV strings per MPP tracker	4/3/3	4/3/3	4/4/4	4/4/4	4/4/4
Max. input current per MPP tracker	52A/39A/39A	52A/39A/39A	52A/52A/52A	52A/52A/52A	52A/52A/52A
Max. short-circuit current per MPP tracker	55A
Output Data(AC)
Rated AC output power	50000W	50000W	60000W	60000W	70000W
Max. AC apparent power	55500VA	55500VA	66600VA	66600VA	77700VA
Nominal AC voltage(range*)	230V/400V (340-440V)	277V/480V (425-540V)	230V/400V (340-440V)	277V/480V (425-540V)	277V/480V (425-540V)
AC grid frequency(range*)	50/60 Hz (45-55Hz/55-65 Hz)
Max. output current	80.5A	66.9A	96.6A	80.2A	93.6A
Adjustable power factor	0.8leading 0.8lagging
THDi	<3%
AC grid connection type	3W+N+PE	3W+PE	3W+N+PE	3W+PE	3W+PE
Efficiency
Max. efficiency	98.8%
European efficiency	98.5%
MPPT efficiency	99.9%
Protection Devices
DC reverse polarity protection	Yes
DC switch	Yes
AC/DC surge protection	Type II / Type II
Insulation resistance monitoring	Yes
AC short-circuit protection	Yes
Ground fault monitoring	Yes
Grid monitoring	Yes
Anti-islanding protection	Yes
Residual-current monitoring unit	Yes
General Data
Dimensions(W / H / D)	680/508/281mm
Weight	52kg
Operating temperature range	–25°C ... +60°C
Nighttime power consumption	<1W
Topology	Transformerless
Cooling	Smart air cooling
Protection degree	IP65
Relative humidity	0~100%
Altitude	4000m
DC connection	H4/MC4(Optional)
AC connection	Cable gland+OT terminal
Display	OLED+LED/WIFI+APP
Interfaces: RS485 / USB /WiFi/ GPRS / RF	Yes/Yes /Optional/Optional/Optional
Warranty: 5 years / 10 years	Yes/Optional
CE, IEC62116, IEC61727, IEC60068, IEC61683, IEEE1547
